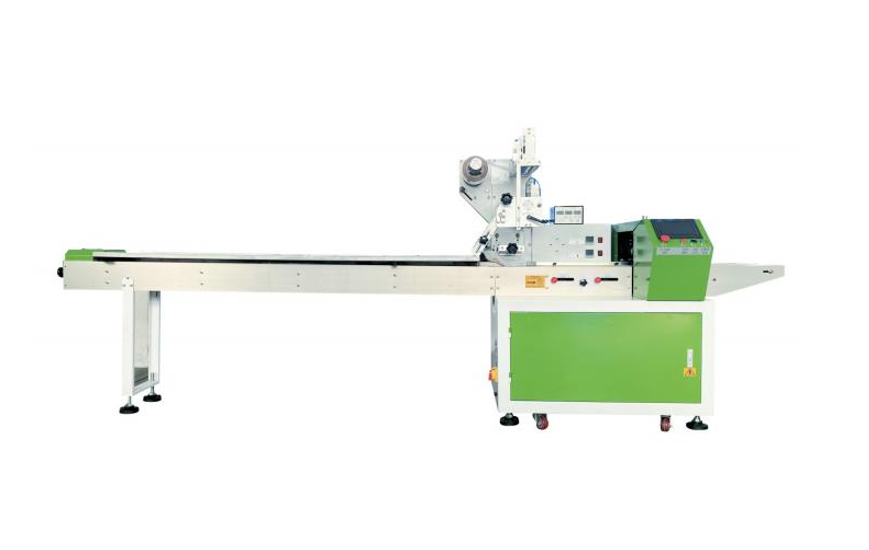

THREE SERVO INTELLIGENT PACKAGING MACHINE 350S
PRODUCT DETAILS
APPLCAITION
Suitable for food industry, pharmaceutical industry, toys and stationery, plastic products , industrial supplies , daily necessities , disposable products , hardware products , industrial parts , auto parts.
TECHNICAL PARAMETERS
Type ：350SN
Film width：Max：350mm
Bag length：80 -6000mm
Bag with：35 - 160mm
Product height：Max：70mm
Film roll diameter：Max：320mm
Packaging rate：25- 230bag/min
Packaging materials：OPP,OPP/CPP, KOP/CPP,ALU - FILM
Power：220V，50/60Hz，45KW
Machine size：( L)3940×(W)1010×(H) 1390
Machine weight：490Kg
PERFORMANCE CHARACTERISTICS
-The bag length does not need to be set manually. It is automatically detected and set during the operation of the equipment.
-Three servo control , mechanical structure , easy maintenance , less wear and tear, long service life.
-Touch screen display, good man-machine interface , centralized and intuitive operation .
-The packaging speed and bag length are servo controlled , with stepless speed change , wide adjustment range , and can match the previous process of the production line .
-High sensitivity electric eye can automatically and accurately track .
-Each sealing temperature is independently controlled , suitable for packaging of various materials , and the sealing is beautiful and firm .
