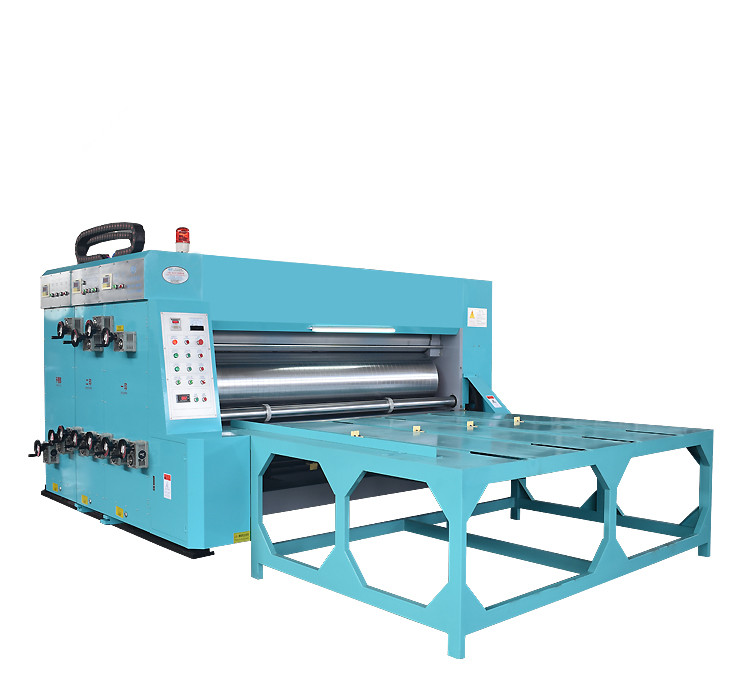

semi automatic corrugated flexographic printing and slotting machine
H2: corrugated flexographic printing and slotting machine China manufacturer
Semi auto cardboard feeding, printing slotting die cutting machine
High cost performance and low price.
Regular and special-shaped cartons can be made.
According to the size requirements of customers.
Professional carton printing machine manufacturer.
Function and characteristic:
1.This machine adopts chain feeding type,bilateral side lay positioning,to ensure that feed paper accurately.
2.Each unit uses electric to separate and combine,pneumatic locking, pneumatic lift plate, automatic ink distributing,pneumatic brake fission positioning.
3.Print and slotting adopts structure of planetary gear type,electric 3600 adjustment,digital display.
4.The lubrication way uses double oil pump,automatic spray,circulating oil supply,keep the balance of the oil level,greatly improve the operation precision and the service life.
5.The machine gear uses 45# steel,helical gear design,shaving uses high frequency quenching.
6.The machine transmission uses cross slide block structure,adopts free key connection,remove the link clearance,operate smoothly.
7.The shaft and roller of the machine are all grinding processing,hard chromium plating.
8.The machine electrical adopts the international famous brand,such as Siemens,Schneider.
9.The machine bearing,adopts one of three domestic famous brands:“Hawa los'”.
10.The slotting unit adopt electric digital 3600 adjustment,stop and start can be adjusted.
11.Box height manually adjust,four knife synchronization.
12.The length and width adjustment, the knife and the line pressing on the top and the bottom,the paper cutter and the paper pressure rod,gauge pointers can be manually linkage shift,save the time of order transformation.
13.The machine is pneumatic combined control,has the function of counting,alarm,operation at the back of the machine.
14.The hanging plate is optional,anilox roller mesh can option 180-250 mesh.
The Machine technique parameter：
Model |
Max.paper feeding size |
Effective printing size | The thickness of The plate |
Slotting width*Max.slotting depth |
Min.paper feeding size | Min.paper feeding size | Roller diameter |
YSK-A-2000 | 1900*1900 mm | 1700*90 mm | 4-7mm | 7*220mm
| 80 | 300*600 mm | 300 |
YSK-A 2200 | 2100*900 mm | 1900*1900 mm | 4-7mm | 7*220mm | 80 | 300*600 mm | 300 |
YSK-B 2400 | 2300*1250 mm | 2100*1250mm | 4-7mm | 7*300mm | 60 | 350*600mm | 405 |
YSK-B 2600 | 2500*1250 mm | 2300*1250mm | 4-7mm | 7*300mm | 60 | 350*600mm | 405 |
YSK-C 2600 | 2500*1470 mm | 2300*1470mm | 4-7mm | 7*350mm | 60 | 400*600mm | 480 |
YSK-C 2800 | 2700*1470 mm | 2500*1470mm | 4-7mm | 7*350mm | 60 | 400*600mm | 480 |
YSK-D 2800 | 2700*1600 mm | 2500*1600mm | 4-7mm | 7*400mm | 60 | 400*600mm | 530 |
YSK-D 3000
| 2900*1600 mm | 2700*1600mm | 4-7mm | 7*400mm | 60 | 400*600mm | 530 |
YSK-D 3000
| 2900*1800 mm | 2700*1800mm | 4-7mm | 7*450mm | 50 | 450*600mm | 600 |
YSK-D 3300
| 3200*1800 mm | 3000*1800mm | 4-7mm | 7*450mm | 50 | 450*600mm | 600 |
