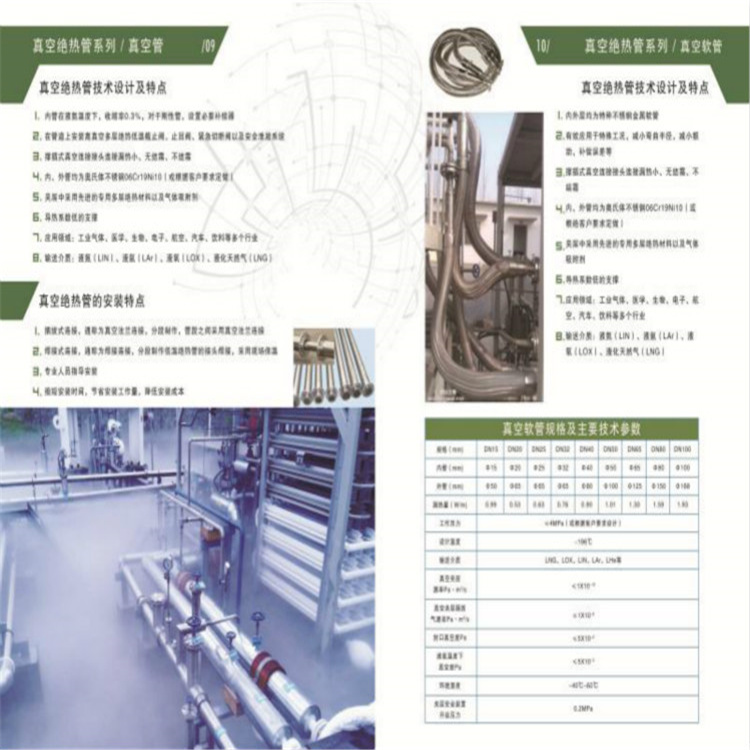

Vacuum hose features:
1. The double-layer stainless steel metal hose is used, and * * * multi-layer insulating composite materials are added in the interlayer to maintain a high vacuum state, so the cold insulation effect is good, and the hose surface is free of water and frost during use.
2. The bending radius is small, convenient to use, and the length can be determined according to user requirements.
3. It can be connected with vacuum pipe.
4. Both ends of the vacuum hose are equipped with storage tank and tank car * * * quick connector, which can greatly reduce the liquid vaporization loss in the liquid filled and discharged by the tank car.
Main technical parameters:
Intermediate pressure: 2.0MPa
Design temperature: - 270 ℃
Operating media: LO2, LN2, LAr, LH2, LHe
Pipe cooling loss: 0.5~2W/m
Interlayer vacuum degree:<0.004Pa
Vacuum leakage rate:<2X-10-10~PAL/S
Ambient temperature: 30~50 ℃
Installation precautions
1. When selecting metal hoses, in order to facilitate installation, please select metal hoses with loose flanges at one end as far as possible.
2. The surface of metal hoses shall be protected during electric welding at the construction site to prevent welding slag and arc striking metal hoses.
3. It is forbidden to install the metal hose twisted.
4. It shall not bend along the root of the metal hose, and there shall be no dead bending.
5. The medium shall not be corrosive to the corrugated pipe material, and the chloride ion content in the medium shall be ≤ 25PPM
6. Strictly install as shown in the figure. Install in the correct way. (See Installation Guide)
7. Do not damage the flange sealing surface mechanically.
8. Do not use a chlorine containing cleaner or wire brush to remove the dirt in the metal hose.
