Length:up tp 60 meters eachDiameter: maximum diameter 1.2 metersPerformance: oi; resistance,acid and alkali resistance,high temperature resistance,wear resistance, corrosion resistance

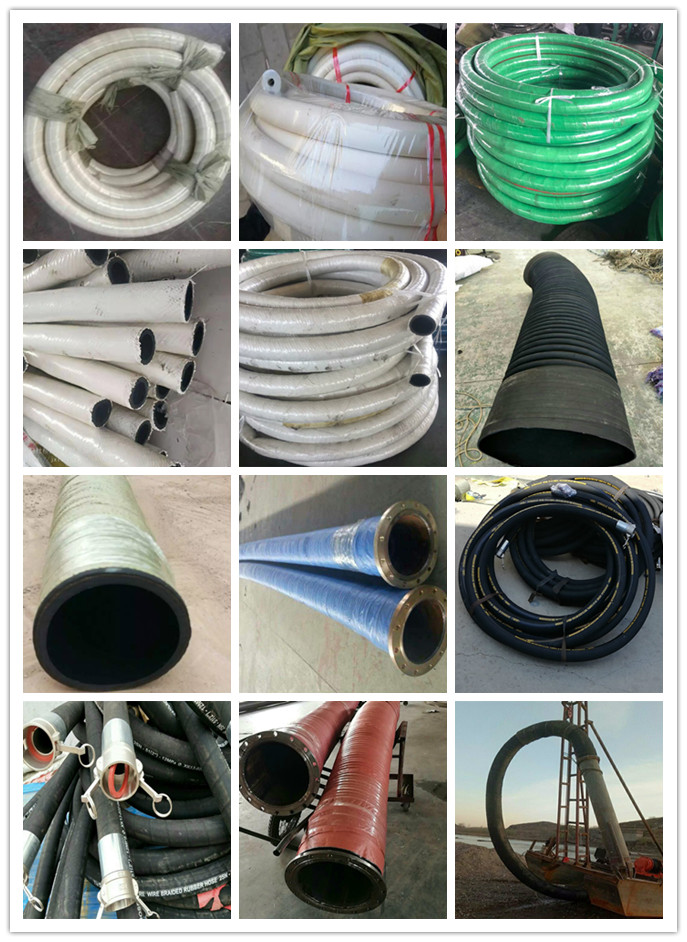

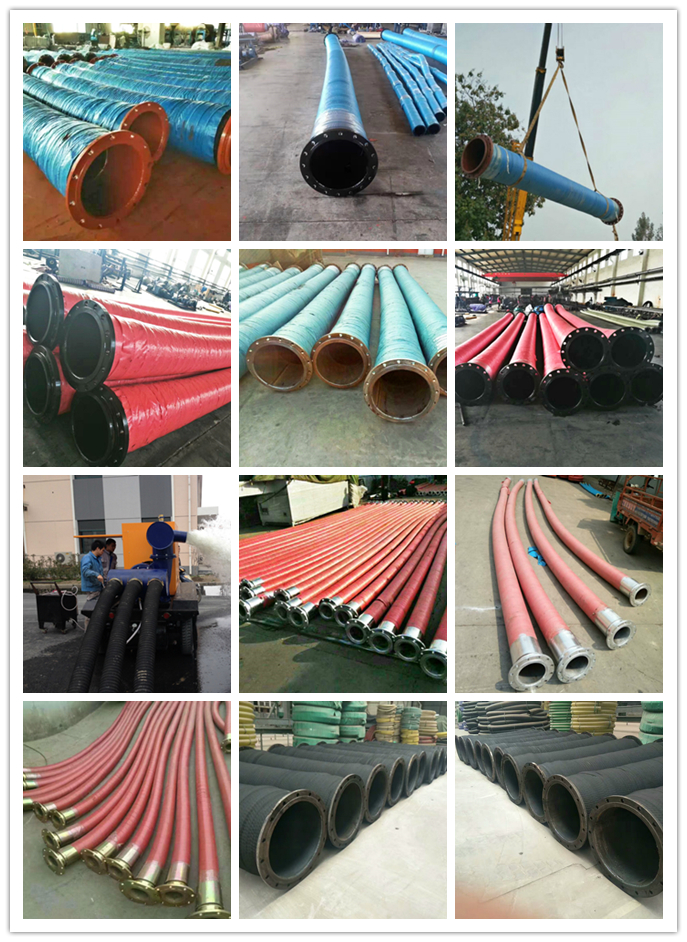

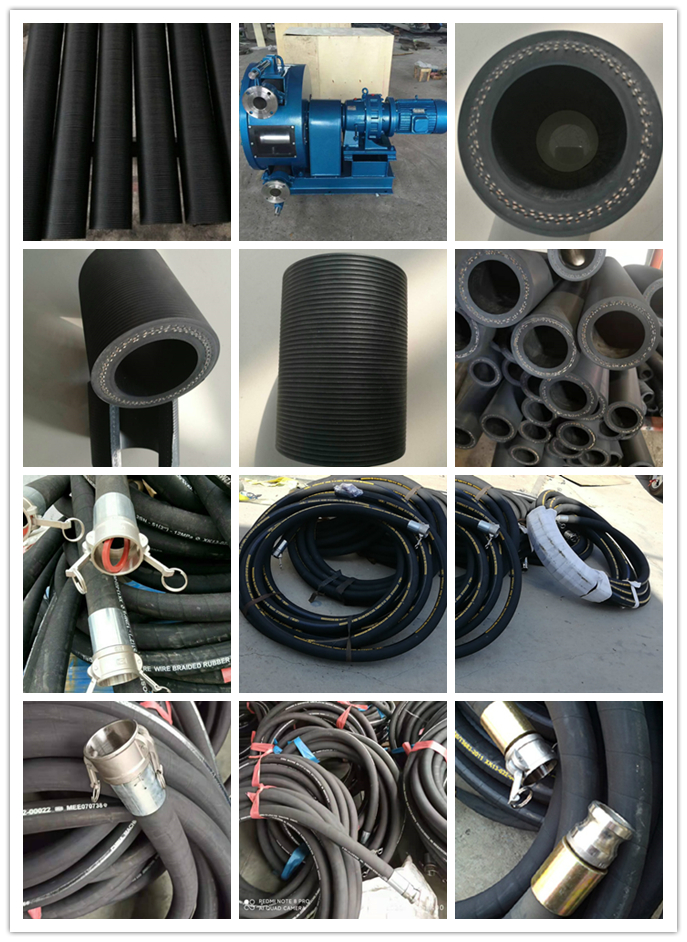

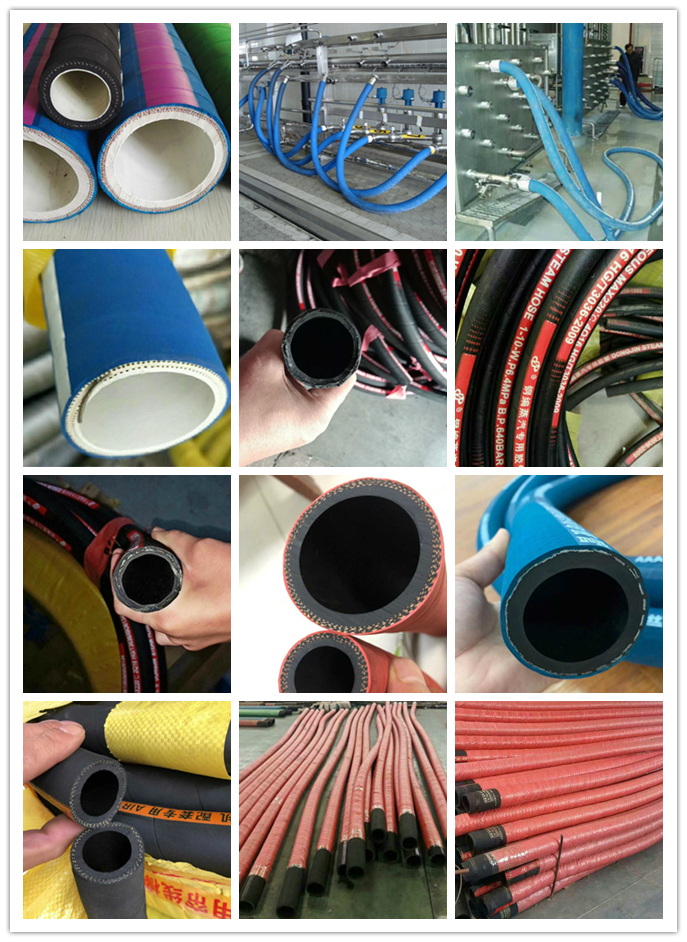

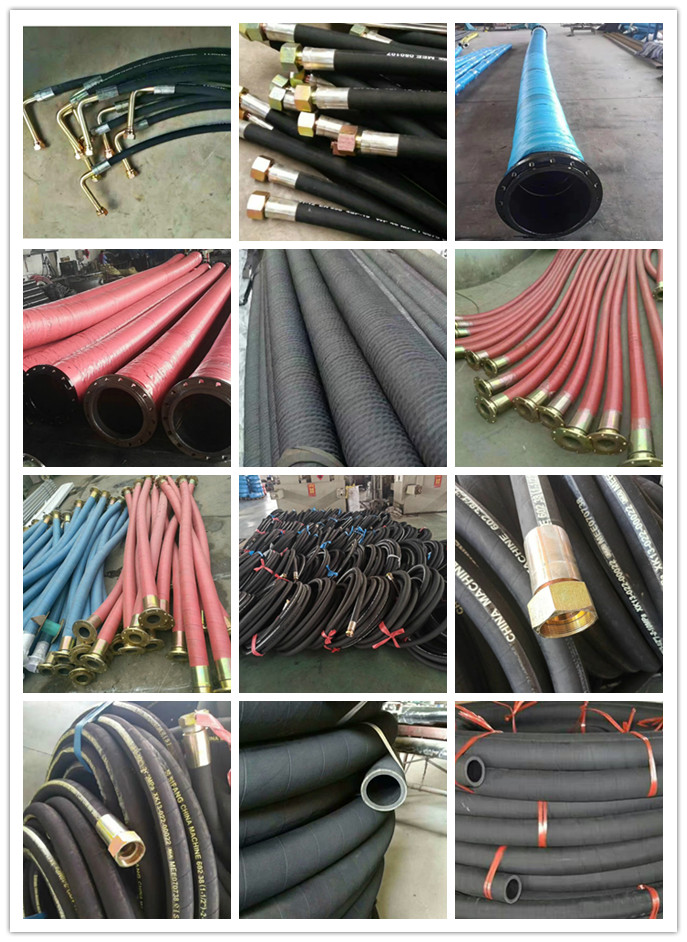

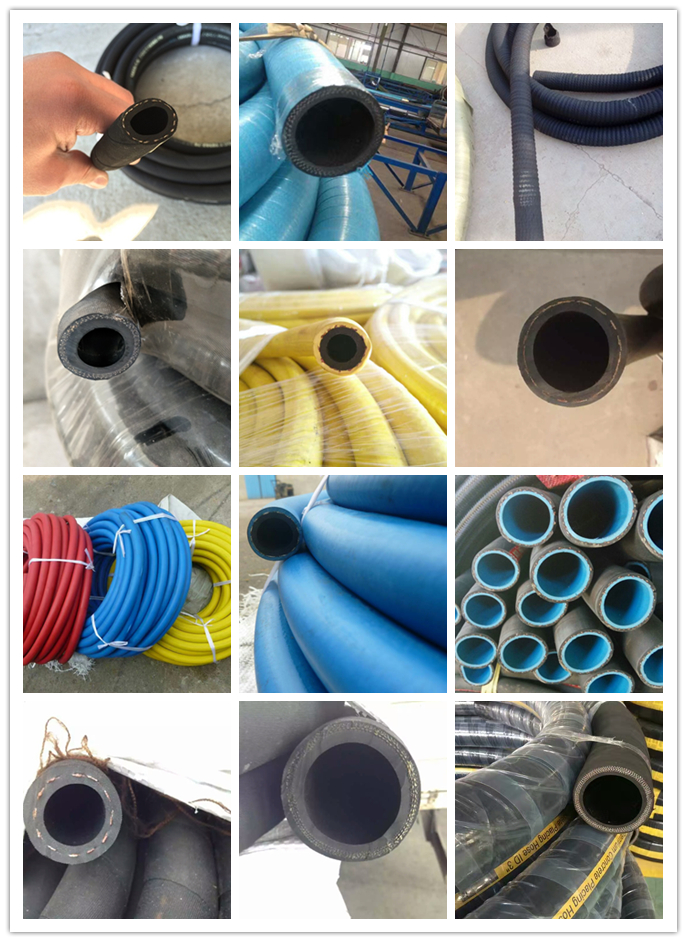

Product Usage:Various types of cloth-filled conveying (or suction) hoses are made of corresponding materials according to different conveying media. The product has reasonable structure, good quality and durability. It is a flexible hose for conveying and inhaling (under negative pressure) various liquid viscous fluids and powdered solids and other material media.
Technical parameters of general cloth clamping conveying hose and suction hose：
| 夹布胶管参数 |
| 内径（mm） | 工作压力 （Mpa） | 对应爆破压力 （Mpa） | 胶管长度 | ||||||
| 公称尺寸 | 公差 | 尺寸（m） | 公差（mm） | ||||||
| 13 | 0.8 | 0.5 | 0.7 | 1.0 | 2.0 | 2.8 | 4.0 | 60 | 200 |
| 16 | 0.8 | 0.5 | 0.7 | 1.0 | 2.0 | 2.8 | 4.0 | 60 | 200 |
| 19 | 0.8 | 0.5 | 0.7 | 1.0 | 2.0 | 2.8 | 4.0 | 60 | 200 |
| 25 | 0.8 | 0.5 | 0.7 | 1.0 | 2.0 | 2.8 | 4.0 | 60 | 200 |
| 32 | 1.2 | 0.3 | 0.5 | 0.7 | 1.2 | 2.0 | 2.8 | 60 | 200 |
| 38 | 1.2 | 0.3 | 0.5 | 0.7 | 1.2 | 2.0 | 2.8 | 60 | 200 |
| 51 | 1.2 | 0.3 | 0.5 | 0.7 | 1.2 | 2.0 | 2.8 | 60 | 200 |
| 64 | 1.5 | 0.3 | 0.5 | 0.7 | 1.2 | 2.0 | 2.8 | 60 | 200 |
| 76 | 1.5 | 0.3 | 0.5 | 0.7 | 1.2 | 2.0 | 2.8 | 60 | 200 |
| 吸引胶管参数 |
| 内径（mm） | 夹布层数 （层） | 螺旋钢丝直径（mm） | 管接头长度（mm） | 胶管长度 | ||||
| 公称尺寸 | 公差 | 尺寸 | 公差 | 尺寸（m） | 公差（mm） | |||
| 38 | 1.2 | 2 | 3 | 2.0 | 75 | 10 | 60 | 150 |
| 51 | 1.2 | 3 | 4 | 2.6 | 100 | 15 | 60 | 150 |
| 64 | 1.5 | 3 | 4 | 2.6 | 100 | 15 | 20 | 150 |
| 76 | 1.5 | 4 | 5 | 2.6 | 100 | 15 | 20 | 150 |
| 89 | 1.5 | 4 | 5 | 3.2 | 100 | 15 | 20 | 150 |
| 102 | 2.0 | 4 | 5 | 3.2 | 125 | 20 | 10 | 150 |
| 127 | 2.0 | 5 | 6 | 3.2 | 125 | 20 | 10 | 150 |
| 152 | 2.0 | 5 | 6 | 4.0 | 150 | 20 | 10 | 150 |
| 203 | 2.5 | 6 | 7 | 5.0 | 200 | 25 | 10 | 150 |
| 254 | 2.5 | 7 | 8 | 5.0 | 200 | 25 | 10 | 150 |
| 305 | 2.5 | 7 | 8 | 5.0 | 250 | 25 | 10 | 150 |
