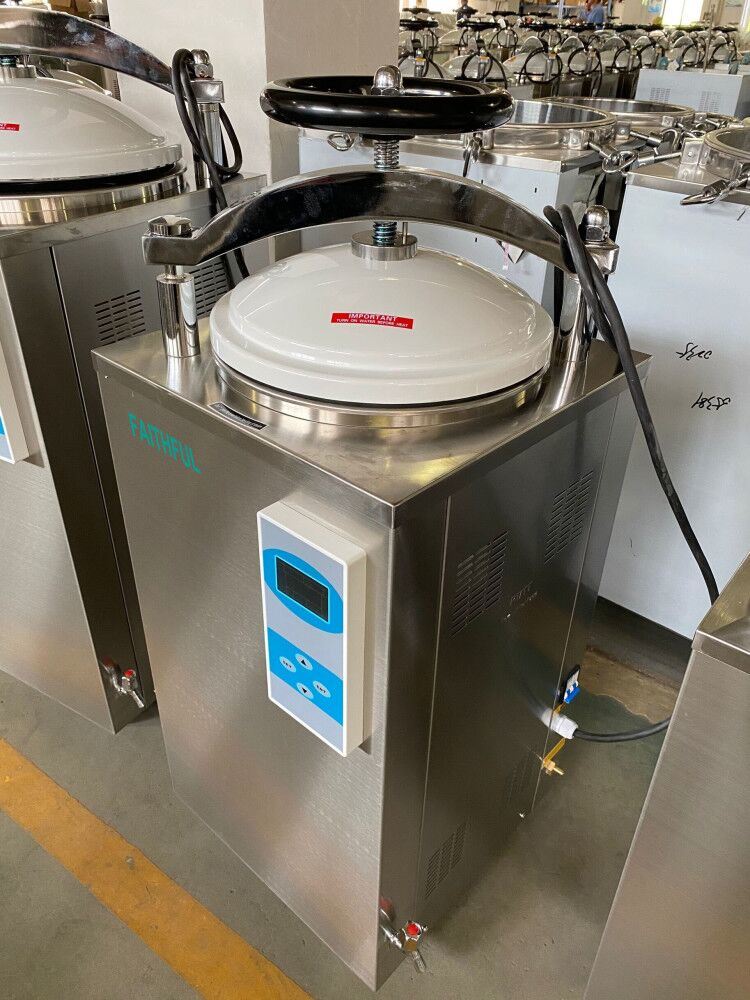

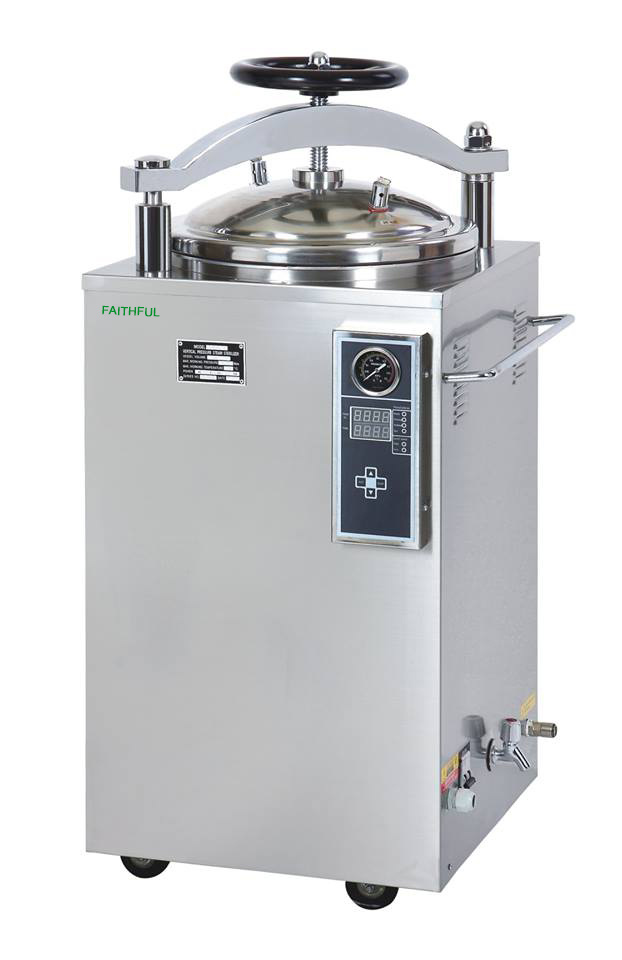

Vertical Pressure Steam Sterilizer

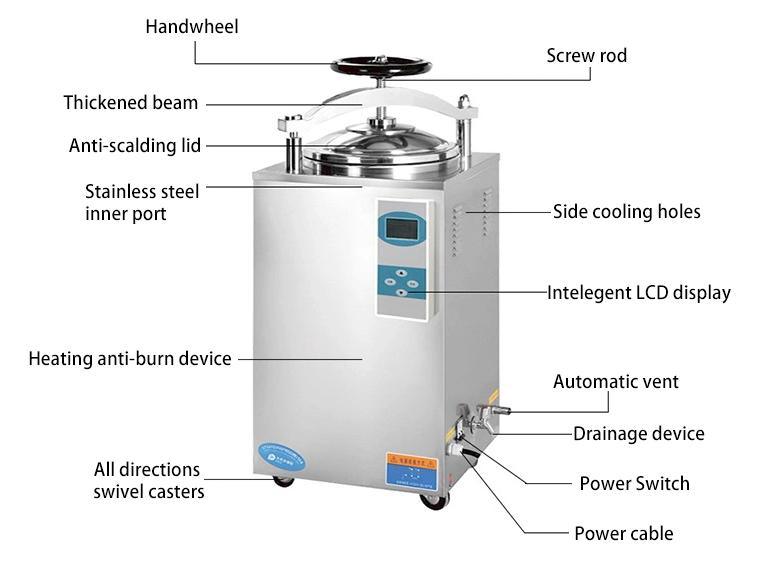

Product Description

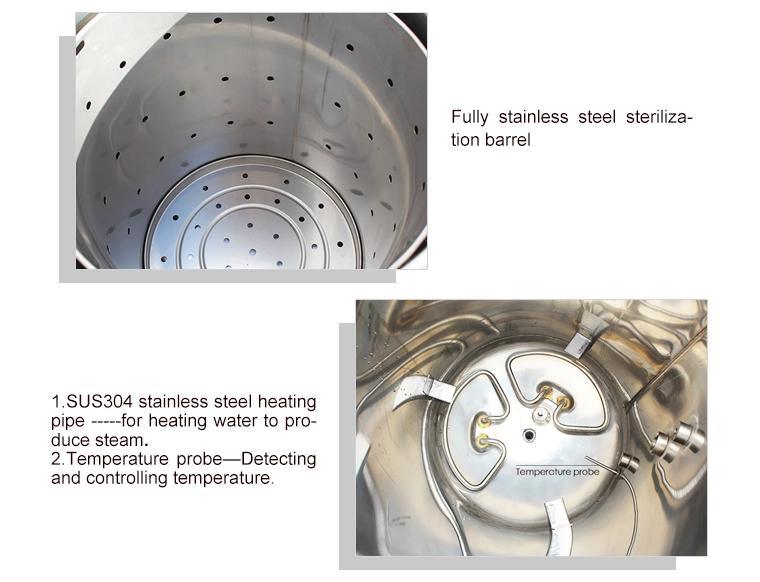

1. The chamber of the sterilizer is made of stainless steel

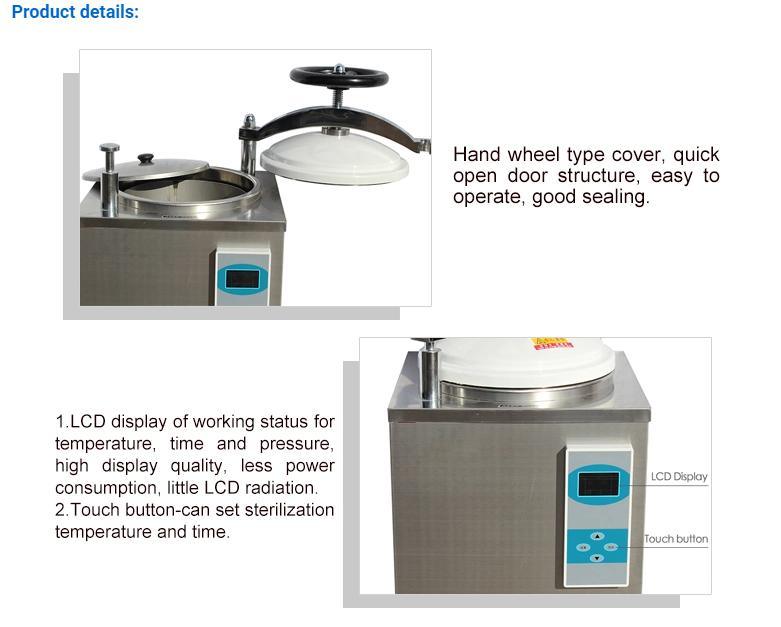

2. Indicator light indicates working state
3. Over temperature & over pressure auto-protection
4. Safe protection of water lacking
5. Double scale indication pressure gauge
6. Automatically shut off with beep reminding after sterilization
7. Easy to operate,safe and reliable
8. With two stainless steel sterilizing baskets
Main Technical Parameters
Model | FSF-35HD | FSF-50HD | FSF-75HD | FSF-100HD | |
Capacity | 35L(φ318*450)mm | 50L(φ340*550)mm | 75L(φ400*600)mm | 100L(φ440*650)mm | |
Working pressure | 0.22Mpa | ||||
Working temperature | 134ºC | ||||
Temperature range | 105-134ºC | ||||
Timer | 0-99min or 0-99hour 59 min | ||||
Heat average | ≤±1ºC | ||||
Power | 2.5KW/AC220V 50HZ | 2.5KW/AC220V 50HZ | 3KW/AC220V 50HZ | 4.5KW/AC220V 50HZ | |
Exterior size(mm) | 400*370*700 | 450*450*1010 | 510*470*1130 | 560*560*1120 | 540*560*1250 |
Packing size(mm) | 400*320*750 | 570*550*1150 | 590*590*1280 | 590*590*1280 | 680*630*1370 |
G.W/E.W | 26/23kg | 72/56kg | 88/68kg | 100/80kg | 110/85kg |
