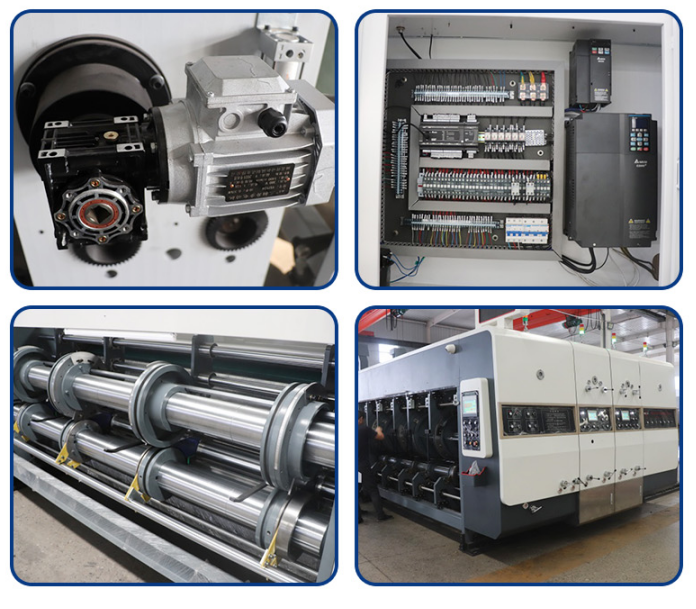

1. Printing roller
[1]The outer diameter is ￠480mm.
[2] The surface of the steel pipe is ground and plated with hard chrome plated.
[3] Do balance correction, stable operation.
[4] Full hanging plate slot, suitable for 10mm×3mm hanging strip.
[5]Loading and unloading the printing plate, the foot switch electrically controls the forward and reverse rotation.
2. Printing press roller
[1]The outer diameter is ￠155.2mm.
[2] The surface of the steel pipe is ground and plated with hard chrome plated.
[3] Do balance correction, stable operation.
3.Phase adjustment mechanism
[1] Planetary gear structure.
[2] Electric digital 360° adjustment of printing phase. (Adjustable for operation and stop)
[3] Manually adjust the horizontal position, the adjustment distance is 10 mm.
4. Ink circulation
[1]Pneumatic diaphragm pump, stable ink supply, simple operation and maintenance.
[2] Ink filter screen to filter impurities.
[3]Plastic ink tank.
