1. product description：

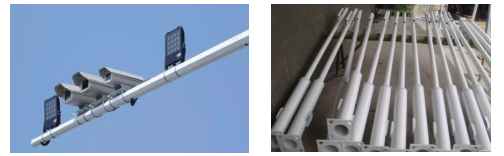

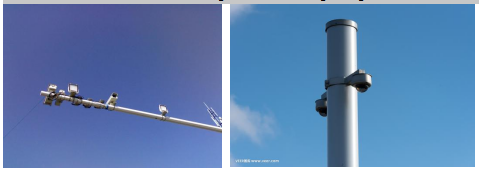

The camera pole consists of a vertical pole, connecting flange, modeling arm, mounting flange and embedded steel structure. The vertical pole or horizontal support arm is made of straight seam steel pipe or seamless steel pipe; the connecting end of the vertical pole and the horizontal support arm is made of the same steel pipe as the horizontal arm, and is protected by a welded reinforcement plate; the vertical pole and the foundation are connected by flanges and embedded bolts , welded reinforcement plate protection; the connection method between the horizontal arm and the vertical pole end adopts flange connection, and is protected by welding reinforcement plate; all welds of the vertical pole and its main components should meet the standard requirements, and the surface should be smooth and smooth. The welding is smooth, smooth, firm and reliable, without defects such as pores, welding slag, weak welding and missing welding. The pole and its main components have lightning protection functions. The non-live metal of the lamp forms a whole and is connected to the ground wire through the ground bolt on the housing.
2. Technical Description:
(1) Hot dip galvanizing process
The internal and external surfaces should be treated with hot-dip pickling and corrosion treatment. The thickness ≥75um should comply with the GB-/T13912-92 standard. The design service life should be no less than 30 years. The galvanized surface should be smooth and beautiful, with basically the same color. It should not be damaged after the hammer test. The skin does not peel off. Provide galvanizing test report.
(2) Spray molding process
The plastic spraying should be made of outdoor high-purity polyester plastic powder, the color is white (according to user requirements), the quality of the plastic layer is stable, it will not fade or fall off. It has strong adhesion, resists strong solar ultraviolet rays, and is resistant to ultraviolet rays, making it suitable for cities along lakes and key saline areas. The design service life is less than 30 years, the thickness is ≥80um, and it meets the ASTM D3359-83 standard. Provide spray testing report. Plastic spray protection requirements: film thickness should not be less than 40um, strong adhesion, no peeling, no peeling. The surface is flat and smooth, and the color is basically the same.
3. Packaging & Shipping:
