Usage

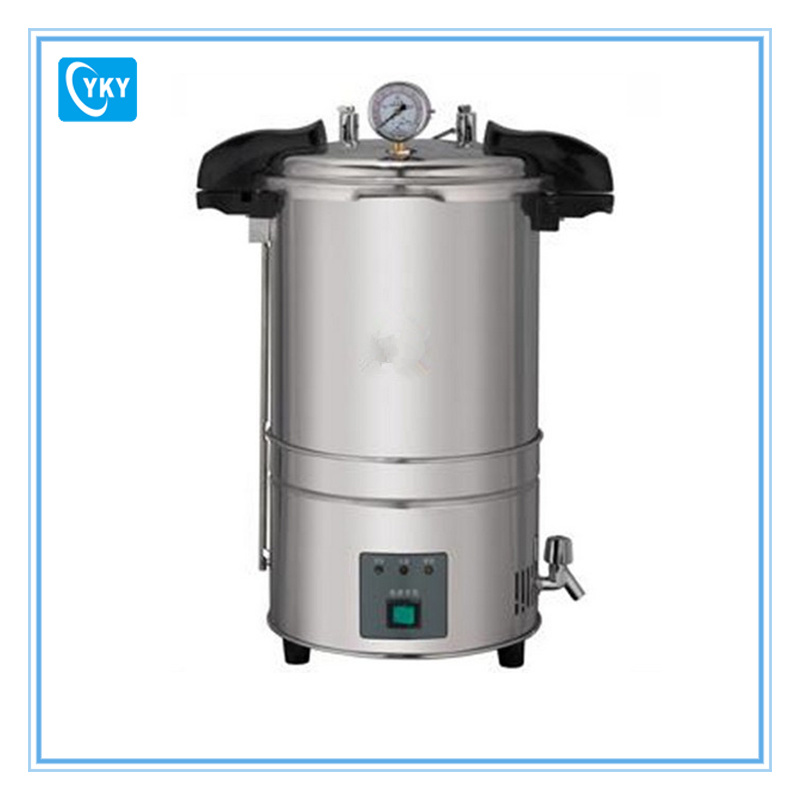

The Vertical Cylindrical Pressure SteamSterilizer is installed with an electrical heater,an automatically pressuretemperaturecontroller, a safety valve, a releasing valve, apressure -temperature indicator, an alarm bell
for finished sterilization and an instrument to
automatically cut off the power of heater. Ithas the advantages of effective sterilization,
convenient operation, safe, less electro cityconsuming and cheap. It is ideal equipment forclinics, scientific research institutes and otherorganizations to sterilizer surgical instruments,fabrics, glasses, culture media etc.
Features
1.Fully stainless steel structure
2.Indicator light indicates working state
3.Over temperature&over pressure auto-protection
4.Double scale indication pressure gauge
5.Safe protection of water lacking
6.Automatically shut off with beep reminding after sterilization
7.Easy to operate,safe and reliable
8.With two stainless steel sterilizing baskets
| Model | CY-35HPS | CY-50HPS | CY-75HPS | |||||
| technicaldata | ||||||||
| Chambervolume | 35L(φ318×450)mm | 50L(φ340×550)mm | 75L(φ400×600)mm | |||||
| workingpressure | 0.22MPa | |||||||
| Workingtemperature | 134ºC | |||||||
| Maxworkingpressure | 0.23Mpa | |||||||
| Heataverage | ≤±1ºC | |||||||
| Timerscope | 0~60min | |||||||
| Temperaturescope | 105~134ºC | |||||||
| Power | 2.5KW/AC220V.50Hz | 3KW/AC220V.50Hz | 4.5KW/AC220V.50Hz | |||||
| Overalldimension | 480×460×850(mm) | 520×520×980(mm) | 560×560×980(mm) | |||||
| Transportdimension | 570×550×970(mm) | 590×590×1110(mm) | 650×630×1150(mm) | |||||
| G.W/N.W | 56Kg/42Kg | 68Kg/50Kg | 90Kg/70Kg | |||||
