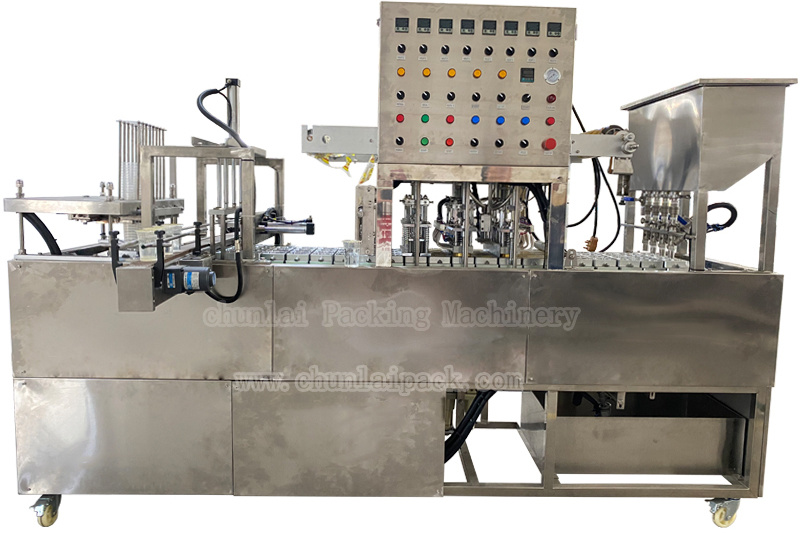

GFMineral Water Cup Washing Filling Sealing Machine
Can be customized according to customer's demand
Sealing film: roll film or pre-cut foil
Filling: liquid, paste, powder, granule
GF-4 Mineral Water Cup Washing Filling Sealing Machine is specially customized for water cup packing. The machine can be used in a variety of applications for the beverage industry, such as pure water, mineral water, juice, milk, yogurt and more.
Depending on the output required, the GF Series Cup Washing Filling and Sealing Machine can be designed for 2 lines, 4 lines, 6 lines, 8 lines, 10 lines per time or more.
Machine basic function include cup de-nesting, washing, filling, heat sealing, automatic feed-out.
Optional
Operation panel: Touch Screen
Servo motor driving
Intelligent design in the case of no cup, the machine will not automatically fill and seal.
Empty cup de-nesting function: according to different cups, some can be designed with vacuum sucker which can guide the cup enter into mold accurately.
Empty cup detecting function: no cup no fling or no cup machine stops
Filling: cup lifting function
Filling tank: level control, CIP washing ball
Foil Storage Device
Foil sensor for detect the film when it ran out, the machine will stop automatically
Blank Film Fixer: to calculate the film length of cup for saving the film cost
Eye Mark Auto Correction: Collocating with a photocell sensor of film pattern mark
Color ribbon date printer for roll film
Automatic Capping System: put plastic cap after sealing
Safety protection: it is optional function, it make up by plexigass, aluminium and stainless stee, has safety switches which protect the operator.
ntent="" style="background-color:#bdd7ee;padding:0 10px;margin:0;line-height:36px;text-align:left;">Product Parameters
Model | GF-2 | GF-4 | GF-6 | GF-8 | GF-10 |
Production capacity | 1600-2000 cups/h | 3000-4000 cups/h | 5000-6000 cups/h | 7000-8000 cups/h | 9000-10000 cups/h |
Filling range | 50-300ml or customized | ||||
Voltage | Single phase 220V, 3 phase 220V 3 phase 380V/400V/415V 50Hz/60Hz | ||||
Power | 2KW | 3.5Kw | 5 Kw | 6 Kw | 7.5 Kw |
Air consumption | 0.6 mз/min | 0.8 mз/min | 1 mз/min | 1.2 mз/min | 1.6 mз/min |
Dimension | 2400×650×1750 mm | 2800×710×1700 mm | 2800×850×1700mm | 3000×900×1700mm | 3000×1000×1700mm |
Weight | 600Kg | 700Kg | 800Kg | 1000Kg | 1200Kg |
ntent="" style="background-color:#bdd7ee;padding:0 10px;margin:0;line-height:36px;text-align:left;">Detailed Photos
Roll Film Sealing
Pre-cut Aluminum Foil Sealing

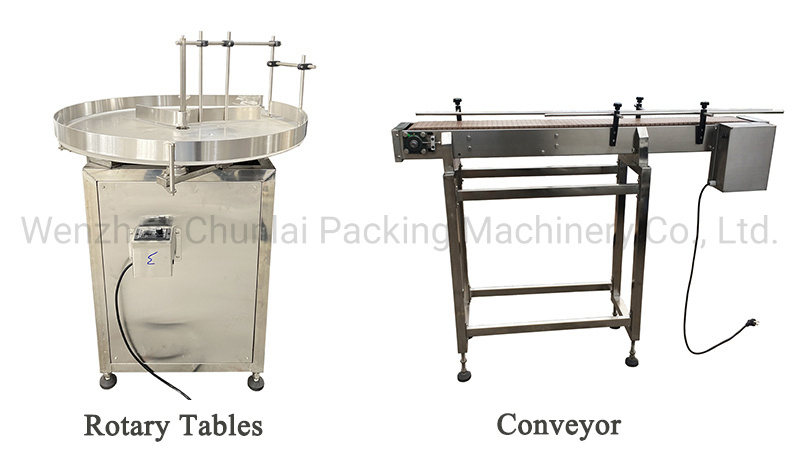

Optional Machine Configuration
ntent="" style="background-color:#bdd7ee;padding:0 10px;margin:0;line-height:36px;">Machine Scope Of Application
| Filling for liquid ,paste,granule,powder,and so on. Sealing for cup,bottle,bowl,tray,can,jar,bucket etc... | ||
| Yogurt /Milk/Chocolate Filling Sealing Machine | Water Filling Sealing Machine | Juice Filling Sealing Machine |
| Jelly/Pudding Filling Sealing Machine | Jam Filling Sealing Machine | Sauce Filling Sealing Machine |
| Instant Noodles Sealing Machine | Tofu/Beancurd Sealing Machine | CoffeeFilling Sealing Machine |
| Lunch box Sealing Machine | Frozen Food/MAP Packaging Machine | Potato Chips Canister Sealing Machine |
| Porridge Filling Sealing Machine | Plastic Jar Sealing Machine | Plastic Bucket Sealing Machine |
| Wet Wipe Can Sealing Machine | Dehumidifier Box Filling Sealing Machine | Cosmetic/Detergent Filling Sealing Machine |
ntent="" style="background-color:#bdd7ee;padding:0 10px;margin:0;line-height:36px;text-align:left;">Recommended Machine
ntent="" style="background-color:#bdd7ee;padding:0 10px;margin:0;line-height:36px;text-align:left;">Company Profile
| Packaging | Shipping |
| First Rust inhibitor | First contact you the machine is ok |
| Second Wrap film | Second put the freight come and take the machine |
| Third Plywood cases | Third Plywood cases |
| Last in container | Last in container |
ntent="" style="background-color:#bdd7ee;padding:0 10px;margin:0;line-height:36px;text-align:left;">After Sales Service
1. Before sending the machine, we will test and adjust it so that you can use it directly after you receive it.
2. The machine is packaged and shipped as a whole machine, without assembly.
3. Send operation videos and instructions to customers to help them use the machine better.
4. If there is any problem during use, we will give professional advice online.
ntent="" style="background-color:#bdd7ee;padding:0 10px;margin:0;line-height:36px;text-align:left;">FAQ
Q: First time import, how can I believe that you would send product ?
A: We are verified company by Made in China ,to make transaction success, we support and recommend LC or with visit our factory.
Q: How to ensure that I received the machine undamaged?
A: First , we package is standard for shipping,then send you the photo when give the product to the freight forwarder. before pick up , please confirm product undamage, if damage, The ship company will take the responsibility.
Q: What aftersales service or any question about products?
A: This machine enjoys 1 years warranty , any problem , I am on line from 9 am to 5 pm, or you can send me mail , will reply you within 12 hours, I'll give you detail instruction.
