Technicals: 5° C65° C(homogenizer)137° C(3-5S)20° C-25° C.
This machine is used to perform continuous sterilization on juice and beverage, milk, and similar products.
This system can be connected with homogenizer and degasser.

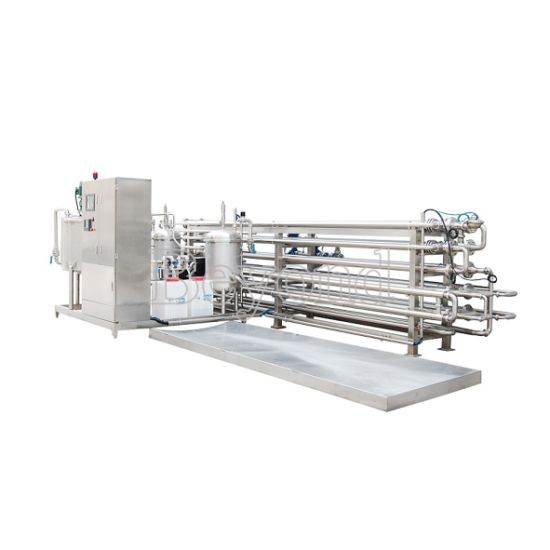

Tubular sterilizer performs the hot processing on the liquid foods and beverage. Compared to the other model, it has the following characteristics:
High heat efficiency, 90% of heat can be reused after the product be processed;
Temperature difference between the product and the heating medium is small, so the heating is gentle; The heating tubular adopts wave pipes, the material and the medium are both in flow;
It is of high degree automatic, can automatically control the CIP cleaning, self sterilizing, and the whole procedures steps; All the procedures are recorded and controllable.
It is of precise and reliable sterilizing temperature control; All the affecting factors such as steam pressure, steam flow rate, product flow rate are all controllable;
The inside of the tubular adopts advanced Polish procedure, all tubes can perform fully cleaning, self sterilizing ensures the system at aseptic state;
The system is strong safety, the fittings all adopts reliable materials.
The system is of high reliable, main parts such as product pump, hot water pump, all kinds of valves, elements of the electrics are all of world known brands.
With self sterilize system;
Technical parameter
| Model | TG-UHT-1.5 | TG-UHT-3 | TG-UHT-5 |
| Capacity(L/H) | 1500 | 3000 | 5000 |
| Material inlet temperature | 25ºC-40ºC | 25ºC-40ºC | 25ºC-40ºC |
| Holding time(seconds) | 120-180 | 120-180 | 120-180 |
| Sterilizing temperature | 95~121ºC | 95~121ºC | 95~121ºC |
| Material outlet temperature | 25ºC-35ºC | 25ºC-35ºC | 25ºC-35ºC |
| Tower water inlet temperature | ≤30ºC | ≤30ºC | ≤30ºC |
| Steam pressure | 0.5MPa | 0.5MPa | 0.5MPa |
| Steam consumption | ~150Kg/h | ~210Kg/h | ~280Kg/H |
| Compressed air pressure | 0.6MPa | 0.6MPa | 0.6MPa |
| Compressed air consumption | 50L/H | 50L/H | 60L/H |
| Dimension(mm) | 7000×2000×2000 | 7000×2000×2000 | 7000×2000×2200 |
| Machine weight | 1700kg | 2000Kg | 2200 Kg |
Condition: New
Brand name: Shanghai Beyond;
Type: whole processing Line/turnkey project/fruit and vegetables processing/dairy processing/beverage processing
Voltage: 220v/380v
Power(W): 100-200kw
Weight: Different size different weight/customized
Dimension(L*W*H): Different size different dimension/customized
Certification: CE&ISO
Warranty: 12 months/1 year
After-sales Service Provided: Engineers available to service machinery overseas
Main material: SUS304 or SUS316
Control type: automatic, semi-automatic
energy consumption: Low consumption with high efficiency
capacity: 500-10000L/H-customized
installation period: 1-3months
Period time: 30 days-120 days
Cups material: pouches, paper box, glass bottle, pet bottle, glass bottle
Product storage condition: room temperature; low temperature;
Related machinery of fruit processing line
Fruit storage silo-- Washing, sorting machine-- Grading/classifier machine
Squeeze extractor--Juice refiner-separator-evaporator-- Juice concentrate product
Fruit flesh/pulp collector-sterilizer--filling machine-fruit flesh
Essential oil refiner-fruit oil
Fruit residues collector-animal feed
Soaking extraction, pre-cooking, pulping, quick freeze, stemmer, ultra-filtration, decolor, destoner, crusher, stone washer, brusher washer, pine apple extractor, refiner, enzymolysis, filtration, CIP cleaning system
Related machinery of dairy(cheese, butter, milk, yoghurt,cream) processing line
Large outdoor storage tank, agitator tank, jacket tank, ferment growing tank, emulsification tank, milk weighing, milk receiving/collecting, extracting, pasteurizer yoghurt, UHT, HTST pasteurizer, plate pasteurizer, tubular UHT sterilizer, spraying type pasteurization, cooling tunnel, bottle tilting sterilization chain, CIP cleaning system, full-auto CIP, semi-auto CIP, evaporator, curd cutting, whey draining, cheese making, scalding/stretching/molding, cheese vat, mozzarella cheese, cheddar cheese, blending system, pre-pasteurization, cream separator system, powder melting, dissolving system, homogenizer system, turn-key project.
