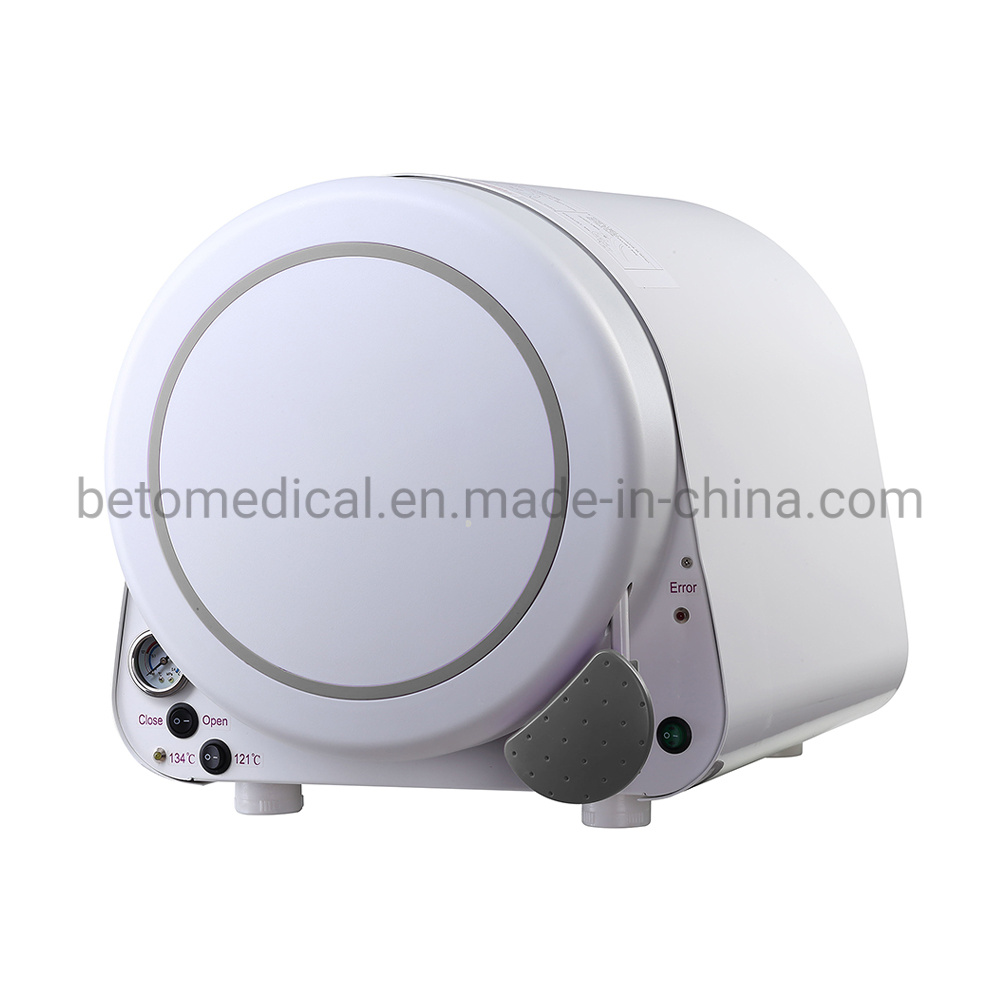

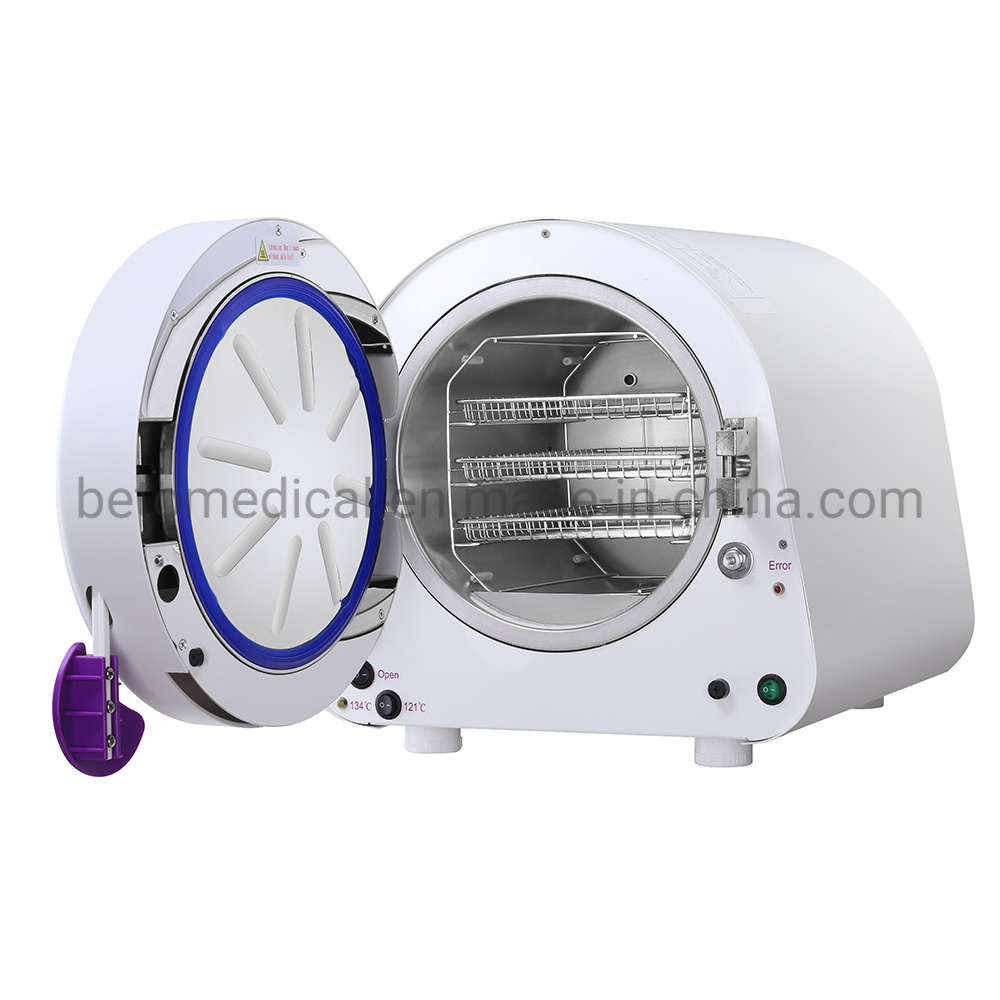

High Quality Class N table top autoclave sterilizer dental Autoclave, 16L
FEATURES
| Sterilization Class | CLASS N |
| Sterilization Temperature | 121ºC &134ºC |
| Dry System | None |
| Display | Pressure/Temperature gague |
| Control Precision | Temperature: 0.1ºC Pressure: 0.1bar |
| Safety System | Relief valve Hand lock door Pressure or temperature over load protection Alarm system |
| Tray Holder | 5 layers tray holder with 3 trays |
| Chamber | Medical stainless steel 304 Max working pressure:2.3bar Min working pressure: -0.9bar Max temperature: 145ºC |
| Operation Temperature | 5~40ºC |
| Noise | <50db |
| Water consumption in one cycle | 0.6L~0.8L |
| Color | Grey |
PROGRAMS
| Program | Pressure | Sterilization Time | DryingTime |
| 134ºC | 210kPa | 5 min | N/A |
| 121ºC | 110Kpa | 20 min | N/A |
MODEL LIST
| Model | Voltage/Power | Chamber Size | Packing Size | Net Weight |
| WHALLE | 220V/1200W | Φ230×320mm | 600x460x455mm | 29 |
Application Field
Dental Clinic, Hospital, First-aid Station, Laboratory, Veterinary hospital, Beauty Salon, Tattoo House,
Application Directive and Standard
| Directive or Standard No. | Directive or Standard Name |
| MDD 93/42/EEC | Medical Device Directive |
| PED 97/23/EC | Pressure Equipment Directive |
| EN 61010-1 | Safety regulations for electrical measuring, controlling and laboratory Devices- Part 1: General requirements |
| EN 61010-2-040: | Safety requirements for electrical equipment for measurement, control and laboratory use -Part 2-040: Particular requirements for sterilizers and washer-disinfectors used to treat medical materials |
| EN 13060 | Small steam sterilizers |
| EN 61326-1 | Electrical equipment for measurement, control and laboratory use - EMC requirements |
Quality System
| Quality System No. | Quality System Name |
| ISO 9001 | Quality management systems-Requirements |
| ISO 13485 | Medical device-Quality management systems-Requirement for regulatory purposes |
CERTIFICATES
| Certificate | Remark |
| ISO 9001 | Authorized by TUV Rheinland |
| ISO 13485 | Authorized by TUV Rheinland |
| Steam Sterilizer CE | Authorized by TUV Rheinland |
| Sterilizer Chamber CE | Authorized by EURO CERT |

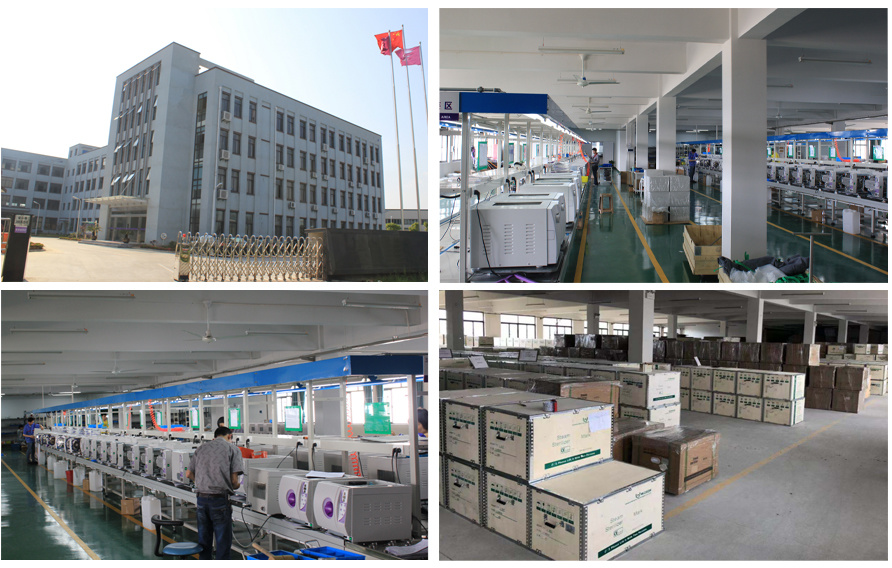

WORKSHOP

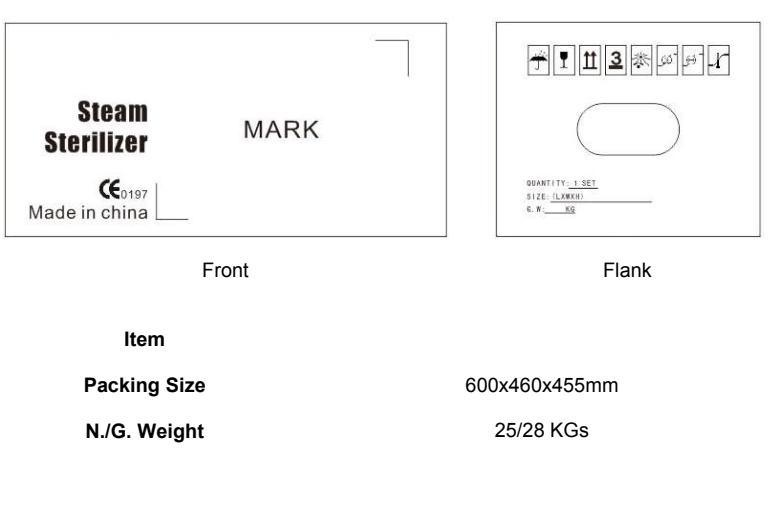

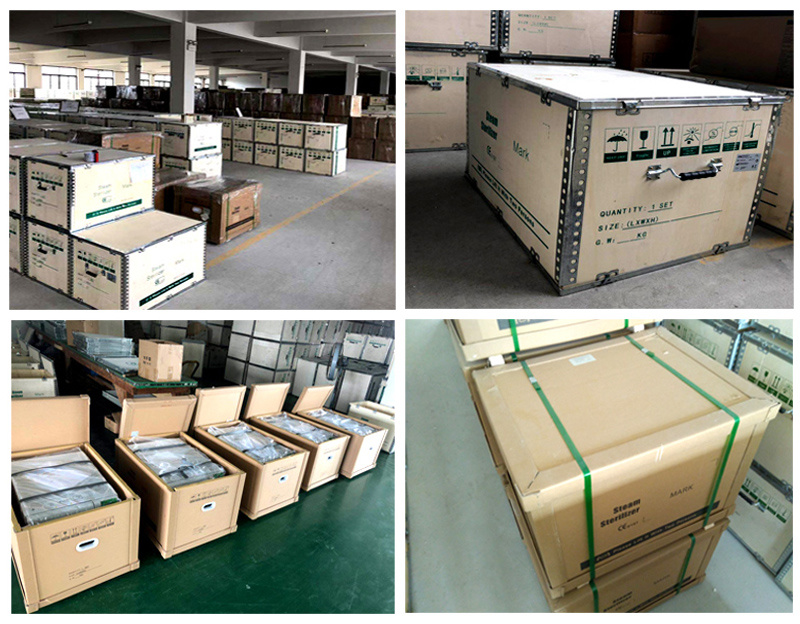

Packaging & Shipping
FAQ
1. What is time of delivery?
Since our products are produced according to each specific order, the delivery period will be 15-30days. Ourproduction capacity is 1500pcs per month.
2.What about quality assurance?
We offer 2 yearswarranty period beginning from the time of shipment. During this period,if the machine get problems, we would provide free spare parts for replacements.
We will provide free spare parts for service back up if order quantity more then 5pcs
3.What about the price level?
We are confident that our prices are competitive compared with those at the same quality level, since we have stayed in this filed more than 20 years. And we always adhere to the principle of provide top quality products with competitive prices. We have already established our good fame in many countries, especially in Europe, Africa, Middle East, Asia and South American through year after year efforts.
4.Why we find some prices are very high compared with some other supplier, and from the picture or it's model number, all looks the same?
As China is still a developing country, there are only a few products with patent rights, and copy products I spread very fast in the market. Of course, the prices of those copy products with cheap material and less quality control are relatively cheaper .
5.What is payment terms?
T/T in advance, L/C, Western Union, PayPal, MoneyGram.
6.Which shipping company usually using?
MAERSK-LINE, PIL, cosco, SAFMARINE, MARUBA, APL, CMA, CSAV, K-LINE, MSC, NYK, AND DHL, EMS, TNT, UPS FOR COURIER, buyer's option will be our priority, we will give suggestion according to the schedule and services.
